NEW PRODUCTS





NEW LEAD FREE Sealed Crimp & Solder Connectors

The Ultimate Connector Just Got Better!

  • Lead free solder has greater surface tension
  • Solder stays in place which provides greater tensile strength than other solder sleeves
  • New solder much less likely to run out of the tubing
  • Solder sleeves pre-fluxed to clean metals & provide a quality solder termination




NEW LEAD FREE Sealed Solder Connectors

Sealing and Soldering Just Got Better!

  • Lead free solder has greater surface tension
  • Solder stays in place which provides greater tensile strength than other solder sleeves
  • New solder much less likely to run out of the tubing
  • Solder sleeves pre-fluxed to clean metals & provide a quality solder termination




NEW Sealed Window Crimp Rings, Spades & Slip-Ons

Take the Guesswork Out of Crimping!

  • 45° barrel assures that wire is seated properly and wire is being crimped to terminal
  • 45° barrel angle allows tubing to adhere to it and provides stronger seal
  • Long ring terminal provides flush surface for maximum contact & allows
    ring terminal to be stacked
  • Color-coded stripes identify wire gauge size to be used with
    connector
  • Color-coded stripes also indicate/guide where to position crimp nest to install properly
  • Brazed seam barrel ensures superior crimp performance
  • Serrations in crimp barrel provide strong mechanical termination




NEW Long Neck Ring & Spade Terminals

The Ideal Terminal for Heat Shrink Connectors!

  • Long neck designed to be insulated with heat shrink tubing
  • Long neck insures proper seal
  • Unique to NSPA
  • 45° barrel allows installer to see wire is fully inserted and wire is crimped to barrel
  • 45° barrel ensures wire is stripped proper length
  • Long neck allows ring terminals to be stacked with maximum contact





NEW Copper Lugs & Splices

  • Made from seamless tubes of 99.9% copper for higher conductivity
  • cUL listed
  • Designed for stranded copper wires
  • Rated for 600 volts
  • Cable size and stud hole stamped on pad
  • Can be crimped or soldered
  • Highly controlled flare to allow easy cable insertion
  • Tight barrel to pad transition provides longer usable barrel length
  • Larger pad area for better contact


NEW Ratchet Crimp Tool Case & Dies

  • Ratchet tool provides consistent crimp force regardless of use
  • Long handles make it easier to crimp (less force required)
  • Ergonomic design to initiate the crimp process
  • Easy to use and understand release mechanism
  • Black case with clear plastic window

New Dies
T-DIE-3B - Open Barrel
T-DIE-3B-L - Open Barrel With Locator
T-DIE-13C - Insulated Closed-End Connectors
T-DIE-4C - Insulated Terminals - Double Crimp
T-DIE-3F - Insulated Flag Terminals


NEW Installation Tools

T-R-17 - Wire & Cable stripper & Wire Cutter
T-R-18 - Wire Stripper & Cutter
T-R-19 - Wire & cable Cutter
T-R-40 - Economical Ratchet Tool



Amalgamating Tape

Self-Fusing – Silicone Rubber Tape
This self-fusing tape is comprised of a high performance silicone rubber, which provides a tough, permanently resilient, void-free, water-tight insulation. The triangular design of the tape assures a smooth, uniform wrap over difficult shapes, such as coils, splices, bus bars, and cable
harnesses. The colored guide line facilitates proper wrapping and saves time. This self-adhering tape cures in 24 hours at room temperature. Faster curing and a harder finish can be accomplished by heating the tape after wrapping.

Available in 7 colors.



Amalgamating Tape

Self-Fusing – Ethylene Propylene Rubber
This insulating, self-amalgamating tape is comprised of a high quality ethylene propylene rubber, which provides a waterproof, void-free insulation. The rectangular design of the tape is ideal for joining and repairing a wide range of solid dielectric power cables up to 132 kV. This tape has excellent physical and electrical properties with a high degree of stability under various conditions of use. The tape amalgamates rapidly when applied under tension to provide a void-free homogeneous wrapping, without the need for
external heat or pressure.

Click the brochure button below for more information on both products.


Economy Heat Shrink Tubing

Economy Thin Wall
Shrink Ratio: 2:1
• A flexible, general purpose tubing for use where an adhesive seal is not needed. Conforms
well to irregular shapes.
• Insulation and strain relief for wire terminals
• Used for electrical harnesses & wire bundling

Economy Heavy Wall
Shrink Ratio: 3:1
• Excellent for battery splices and terminations
• Flame retardant
• Adhesive lining provides a barrier against contaminants
• Superior abrasion and environmental protection in harsh conditions



Flexible Adhesive-Lined Heat Shrink Tubing

HST 200 Series
Shrink Ratio: 3 to 1
A flame-retardant tubing (except clear) with an internal layer of thermo-plastic adhesive which provides a barrier against contaminants. Still highly flexible for conforming to irregular shapes.

Environmental protection for electronic components
• Protection of automobile, marine and truck wire splices and harness breakouts
• Adhesive-lining provides a seal against corrosion.
• 4 NEW colors to choose from: Yellow, Green, White & Blue in addition to Black,
Clear & Red


Adhesive Clips

Adhesive clips are specially designed to provide longitudinal water sealing in small wire bundles.
• Must be used with adhesive-lined heat shrink tubing
• Most adhesive-lined heat shrink tubing is designed to insulate & seal a single wire or cable
• Adhesive clips allow the installer to use standard adhesive-lined tubing to seal multiple wires,
non-standard wire harnesses, and plug connectors
• Adhesive clips attach to a single wire or multiple small wires
• Recommend that the opening is facing the wall of the heat shrink tubing, instead of the
center of the tubing


OptiSeal

Sealed Window Crimp Connectors offer the following visual assurances:
• Window ensures the wire is properly seated
Color stripes indicate where to crimp the connector
• Crystal Clear™ waterproof tubing allows for indisputable inspection of the wire’s condition


Grab and Go Jars

• Designed for Most Popular Connectors
• Ideal for High and Low Volume Users
• Attractive Packaging for Organization while Providing a Visual Stock Level
• Great for Service Trucks and Satellite Shops
• Larger Quantity = Bigger Sales

Available in:
Sealed Crimp Butt Connectors
Sealed Window Crimp Butt Connectors
Sealed Crimp & Solder Butt Connectors
Sealed Solder Butt Connectors

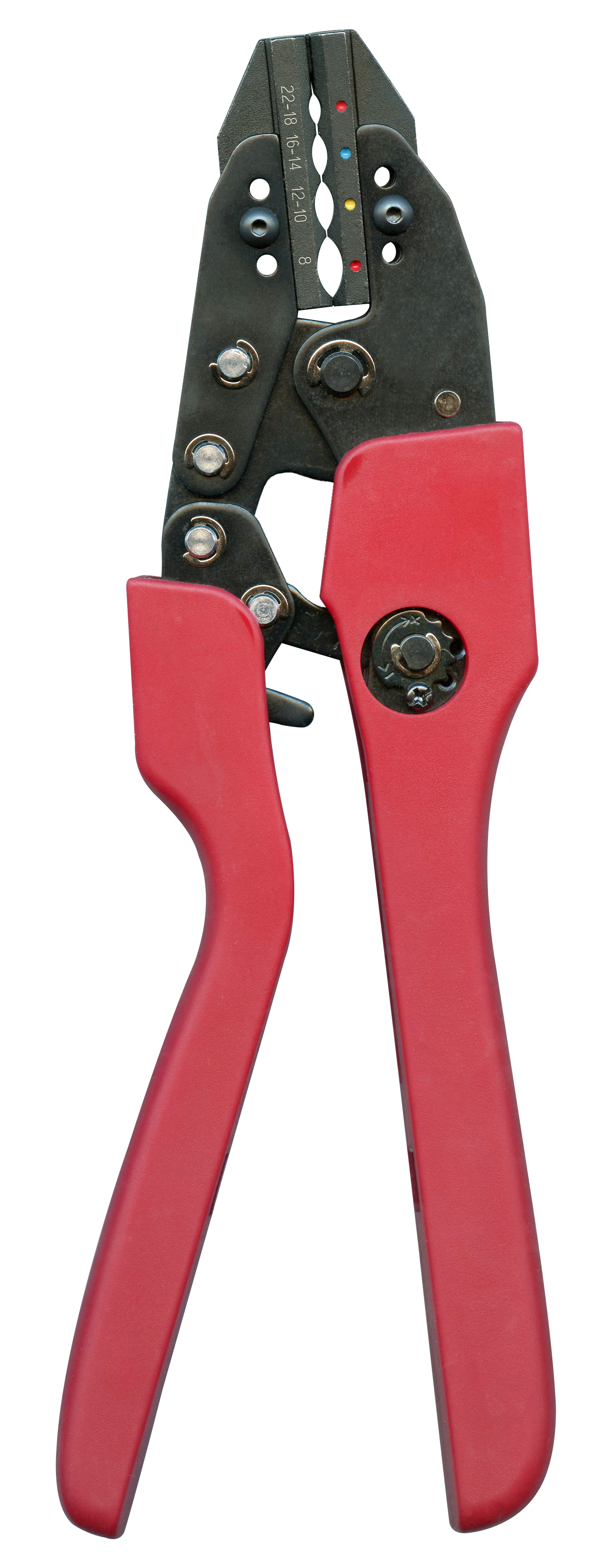

T-R-50
4 crimp nests!
• 8 AWG, Red • 12-10 AWG, Yellow 16-14 AWG, Blue • 22-18 AWG, Red
• Mating Mechanism prevents the jaws from slipping or mis-alignment
• Long handles make it easier to crimp (less force required)
• Easy to use & understand release mechanism
• Ergonomic design to initiate the crimp process


For use with the following product lines:
Vinyl Step-Down
Connectors
