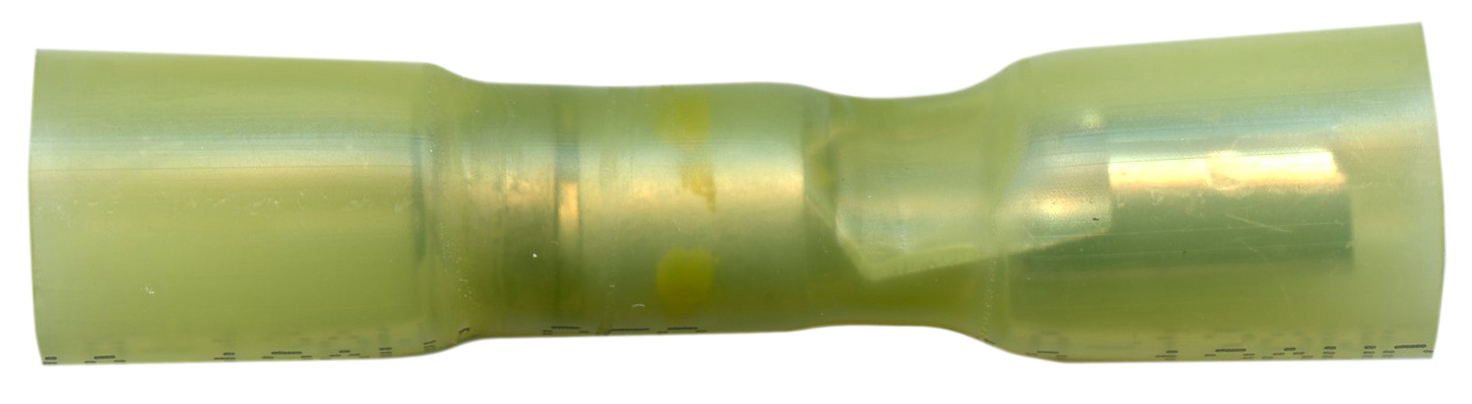

LEAD-FREE MultiLink Long-Neck Bullet Receptacle, 12-10 AWG, .157″ Dia
MLF7-10-15FFL
| Trade Name | MultiLink |
|---|---|
| Connection Type | Solder (Lead-Free) & Crimp |
| Insulation Material(s) | Heat Shrink Polyolefin |
| Insulation Color | Yellow |
| AWG | 10-Dec |
| Connector | Fully-Insulated Bullet Receptacle (Long) |
| Stud Size | n/a |
| Mating Size | 0.157" |
| Barrel Seam | Butted, with Sleeve |
| Crimp Connector Material | Copper |
| Crimp Connector Plating | Tin |
| Tubing Shrink Temperature | 135°C (275°F) |
| Operating Temperature | -55°C to 110°C (-67°F to 230°F) |
| UL Listed/ Recognized | N |
| Approx Weight/Ea (lb) | 0.0051 |
